Rack and Pinion Quality: Why the Details Make the Difference

Rack and Pinion Quality: Why the Details Make the Difference

31 Jan 2026 0 comment

Blog

In high-precision linear motion systems, rack and pinion quality plays a critical role in accuracy, torque transmission, and long-term performance. While many buyers select racks based on price or a general “Grade 6” label, the real performance lies in the finer technical details—details that often vary from supplier to supplier.

At Superslides, the Authorised Distributor of Apex Dynamics in India, we believe informed decisions lead to better machine performance. This blog explains what Rack Grade 6 (Q6) truly means, how Apex Dynamics defines quality, and how choosing the right rack variant impacts your application.

Understanding Grade 6 (Q6) Rack and Pinion Quality

Grade 6 is the most commonly used quality level in precision rack and pinion drive systems. However, there is no single global definition for Grade 6. Different manufacturers define tolerances differently, which can make comparisons difficult.

The only consistently comparable parameter across suppliers is length deviation per meter. Other factors—such as hardness, surface finish, and heat treatment—can vary significantly.

Ordering a Grade 6 rack alone does not guarantee:
  • The same heat treatment
  • The same hardness
  • The same feed force capability

These elements are critical in high-precision and high-load applications.

How Apex Dynamics Defines Grade 6 Quality

Unlike generic standards, Apex Dynamics uses clearly defined, measurable parameters to ensure consistent performance.

Key Accuracy Parameters at Apex Dynamics:
  • Pitch deviation per tooth: < 8 µm
  • Total pitch deviation: < 34 µm/m
  • Helix angle deviation: < 10 µm

Some suppliers describe pitch deviation as:
  • “< 15 µm / 300 mm”
  • Or simply “Positional Accuracy”

These variations make direct comparison difficult. Apex Dynamics eliminates confusion by providing transparent, consistent specifications.

Apex Dynamics Quality 6 Rack and Pinion – Standard Version

Apex Dynamics’ standard Quality 6 rack is engineered for high-precision and high-load applications.

Key Features:
  • Teeth are continuously induction hardened and ground
  • All sides ground for precise mounting
  • Tangential feed force up to 8,870 N (module 2)
  • Available in lengths up to 2 metres

Typical Applications:
  • CNC machining centres
  • Grinding machines
  • Bending machines
  • High-torque, high-dynamic industrial systems

Application-Specific Rack Variants from Apex Dynamics

Not every application requires maximum hardness or surface treatment. Apex Dynamics offers optimised variants that maintain accuracy while adapting to specific use cases.

Quality 6M (Milled Sides):
  • Teeth ground, other sides milled
  • Same accuracy as standard Q6
  • Slightly higher surface roughness
  • Tangential feed force up to 8,870 N (module 2)

Ideal for: Applications where full side grinding is not essential.

Grade 6A (With Mounting Holes for Linear Guides)

  • Mounting holes rotated 90° or 180° relative to tooth profile
  • Enables direct guide mounting
  • Faster alignment and maximum accuracy
  • Standard Q6 rack with added mounting flexibility

Ideal for: Compact machine designs requiring quick installation.

Quality 6C (Carbon Steel):
  • Teeth are ground but not hardened
  • Tangential feed force up to 1,940 N (module 2)
  • Available in lengths up to 1 metre
Ideal for:
  • Laser cutting machines
  • Applications with lower torque and dynamics
  • Systems demanding high positioning accuracy with reduced load

Choosing the Right Rack and Pinion: More Than Just Price

One of the most common mistakes in rack and pinion selection is choosing purely based on cost.
Example Comparison:
  • Standard Grade 6 vs Grade 6C
    • Accuracy is identical
    • Standard Grade 6 can transmit up to four times more torque
This is why understanding accuracy, hardness, torque capacity, and application requirements is essential before selecting a rack.

Why Choose Superslides?


What We Offer:
  • Expert guidance on linear drive systems
  • Deep understanding of tolerances and specifications
  • Genuine Apex Dynamics products
  • Reliable delivery timelines
  • Technical support you can trust

When you choose Superslides and Apex Dynamics, you’re not just buying components—you’re investing in precision, reliability, and long-term performance.

Final Thoughts

Rack and pinion quality is defined not just by a grade number, but by accuracy standards, heat treatment, feed force, and application suitability. Understanding these details ensures better machine performance, longer service life, and higher return on investment. For expert guidance and genuine Apex Dynamics rack and pinion solutions, Superslides is your trusted partner in India.
Read More

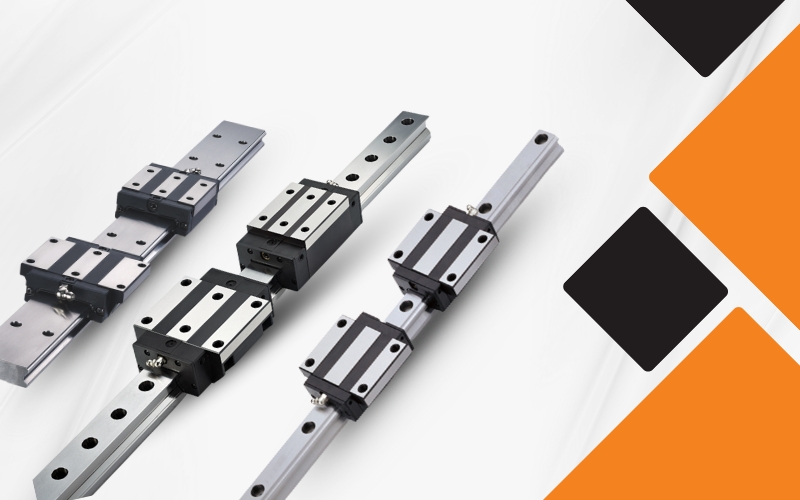

Linear Guideways: Ensuring Smooth, Reliable Linear Motion in Modern Industrial Systems

Linear Guideways: Ensuring Smooth, Reliable Linear Motion in Modern Industrial Systems

31 Jan 2026 0 comment

Blog

In today’s precision-driven manufacturing environment, linear guideways are essential components for achieving smooth, accurate, and repeatable linear motion. From CNC machines and automation systems to robotics and packaging equipment, linear guideways enable controlled movement while maintaining rigidity, stability, and long service life.

At Superslides, we supply premium linear guideway solutions designed to meet the demands of modern industrial applications.

What Are Linear Guideways?

A linear guideway is a mechanical system that supports and guides moving machine parts along a fixed path with minimal friction. It consists of a precision-engineered rail and a rolling element carriage that allows smooth motion under load.
Unlike traditional sliding systems, linear guideways:
  • Reduce friction and wear
  • Improve positional accuracy
  • Support heavy and dynamic loads
  • Deliver consistent, repeatable performance
These advantages make linear guideways a fundamental component in high-performance machinery.

Why Linear Guideways Matter in Industrial Automation

Linear guideways ensure controlled, vibration-free motion, which is critical for maintaining accuracy in automated and high-speed processes. Their design allows machines to operate with higher efficiency, reduced energy consumption, and improved reliability.
Key functions include:
  • Accurate positioning of moving components
  • Stable support for dynamic and static loads
  • Smooth motion even under continuous operation

Superslides Linear Guideway Portfolio

Superslides offers a comprehensive range of linear guideways tailored to diverse industrial requirements.
Available Guideway Series:
  • MSB Series – Compact Type
  • MSG Series – Miniature Type
  • MSC Series – Miniature Type
  • MSR Series – Cross Roller Type
  • RS Series – Ball Roller Type
  • SMR Series – Roller Chain Type
  • SSR Series – Ball Chain Type
  • SHN Series – Ball Chain Type
  • SHS Series – Ball Chain Linear Guideway

Each series is engineered with specific load capacity, rigidity, travel accuracy, and vibration control characteristics to suit different applications.

Applications Across Industries

Linear guideways are widely used across multiple industrial sectors due to their adaptability and precision.
Typical Applications:
  • CNC machining centres and milling machines
  • Heavy-duty machine tools and gantry systems
  • Packaging machinery and assembly lines
  • Semiconductor and electronics manufacturing
  • Robotics and automation equipment

Application Examples:
  • In heavy-duty machine tools, high-load guideways ensure stability and long-term accuracy
  • In compact automation systems, miniature guideways provide precise movement in limited spaces
  • In cross-roller applications, high moment loads and short travel strokes are easily accommodated

Benefits of Premium Linear Guideways

Using high-quality linear guideways delivers several operational advantages:
  • Low friction and smooth motion
  • Reduced noise and vibration
  • High rigidity and load-bearing capability
  • Improved machine accuracy and repeatability
  • Lower maintenance and longer service life
  • Energy-efficient operation

These benefits contribute directly to higher productivity and reduced total cost of ownership.

Selecting the Right Linear Guideway

Choosing the correct linear guideway is essential for optimal machine performance.
Key Selection Factors:
  • Load conditions: Static, dynamic, and moment loads
  • Travel length: Short stroke or long-distance movement
  • Accuracy requirements: Positioning and repeatability needs
  • Environmental conditions: Dust, debris, lubrication, and temperature
  • System integration: Compatibility with motors, ballscrews, actuators, and supports
Superslides provides expert guidance to ensure the selected guideway matches both technical and operational requirements.

Why Partner with Superslides?

Superslides is more than a supplier—we are a technical partner in linear motion solutions.
What Sets Us Apart:
  • Trusted supplier of premium linear guideway products
  • Strong focus on quality, precision, and reliability
  • Application-specific recommendations and support
  • Customer-centric approach and prompt assistance
  • Reliable logistics and nationwide support network

Our expertise helps customers achieve efficient, stable, and precise linear motion in demanding industrial environments.

Conclusion

Linear guideways are a critical element in modern industrial systems, enabling smooth motion, high accuracy, and long-term reliability. Selecting the right guideway improves machine performance, reduces downtime, and enhances overall productivity.

With Superslides, you gain access to advanced linear guideway solutions backed by technical expertise and dependable support—ensuring your machines move with precision and confidence.

Read More

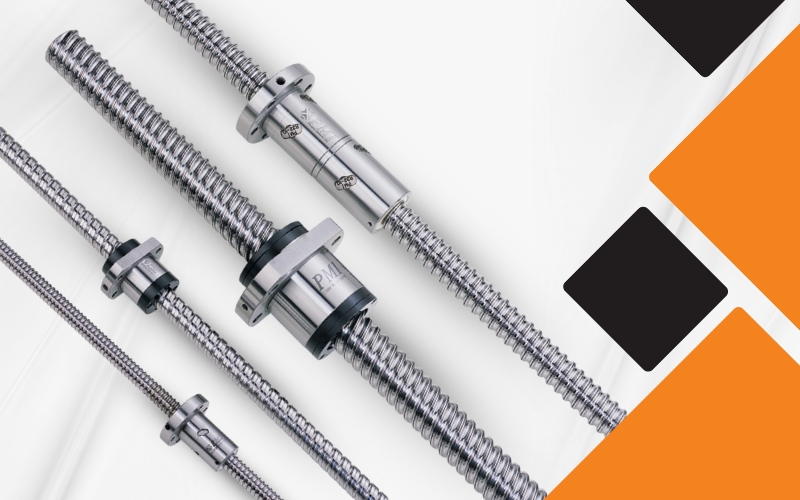

Understanding Ballscrews: Precision Linear Motion for High-Performance Machinery

Understanding Ballscrews: Precision Linear Motion for High-Performance Machinery

31 Jan 2026 0 comment

Blog

In today’s advanced manufacturing landscape, precision, repeatability, and durability are non-negotiable. At the heart of many high-performance machines lies a critical linear motion component—the ballscrew. Designed to convert rotational motion into smooth, accurate linear movement, ballscrews play a vital role in ensuring efficiency, accuracy, and long service life across demanding industrial applications.

At Superslides, we offer a comprehensive range of high-quality ballscrews engineered to meet the evolving needs of modern machinery.

What Is a Ballscrew and Why Is It Essential?

A ballscrew is a mechanical device used to convert rotary motion into precise linear motion using recirculating balls between a threaded shaft and nut. Unlike conventional lead screws, ballscrews significantly reduce friction, resulting in:
  • Higher mechanical efficiency
  • Improved positioning accuracy
  • Lower heat generation
  • Longer operational life
Because of these advantages, ballscrews are indispensable in systems where precision, speed, and reliability are critical.

Precision and Accuracy at the Core

Ballscrews deliver superior performance by minimising backlash and ensuring consistent motion control. Compared to traditional motion components, they offer:
  • High positional accuracy
  • Smooth and vibration-free movement
  • Excellent load-carrying capacity
  • Repeatable motion even at high speeds
This makes ballscrews ideal for machines that demand tight tolerances and stable linear motion.

Superslides Ballscrew Product Range

Superslides supplies a wide variety of ballscrew types and configurations to suit diverse industrial applications.
Available Options:
  • Rolled ballscrews for cost-effective precision
  • Precision-ground ballscrews for high-accuracy requirements
  • External circulation ballscrews with advanced nut designs
  • High-lead-accuracy systems for precision linear movement per revolution
  • Custom solutions for unique operating environments

These options allow engineers to select the most suitable ballscrew based on load, speed, accuracy, and operating conditions.

Applications and Industry Relevance

Ballscrews are widely used across multiple industries due to their versatility and performance reliability.
Common Applications:
  • CNC machining centres and turning machines
  • Plastic injection moulding machines
  • Electrical discharge machines (EDM)
  • Laser cutting and wire-cutting machines
  • Industrial robots and automated production lines
  • Packaging and high-speed automation systems

Industry-Specific Benefits
  • Machine tools: High rigidity and precision ensure accurate cutting and finishing
  • Semiconductor & robotics: Smooth motion and micro-level accuracy are essential
  • Packaging machinery: Reduced noise, high speed, and consistent operation

Why Choose Superslides for Ballscrews?

Superslides stands out as a trusted linear motion partner by combining technical expertise with globally reputed products.
Our Key Strengths :
  • Exclusive distributor of **PMI (Taiwan) ballscrews in India
  • High global quality standards and proven performance
  • Pecision-focused manufacturing and testing processes
  • Reliable supply chain and consistent product availability
  • Strong technical support and application guidance

Our approach ensures customers receive not just components, but complete motion solutions.

Selecting the Right Ballscrew: Key Considerations

Choosing the correct ballscrew is crucial for achieving optimal machine performance.
Factors to Evaluate
  • Load capacity: Axial and moment loads
  • Lead selection: Balance between speed and torque
  • Accuracy grade: Based on positioning and repeatability needs
  • Operating environment: Dust, coolant exposure, temperature variation
  • Noise and vibration levels: Especially for high-speed or precision systems
  • Integration compatibility: Servo motors, supports, and end machining

Superslides also offers custom end machining, hardened shafts, and ground lead options to ensure seamless integration into your system.

Conclusion

Ballscrews are a foundational element in high-performance linear motion systems. Selecting the right ballscrew directly impacts machine accuracy, efficiency, reliability, and service life. With Superslides, you gain access to world-class ballscrew solutions backed by technical expertise, premium manufacturing standards, and dependable support. Whether your application demands speed, precision, or durability, Superslides helps you move with confidence—Precision in Every Motion.
Read More
Choosing the Right Linear Guide Rails for Your Automation Needs

Choosing the Right Linear Guide Rails for Your Automation Needs

06 Jun 2025 0 comment

Blog

In the world of industrial automation, precision and reliability are paramount. Linear guide rails are critical components that ensure smooth, accurate, and efficient motion in various machinery and automated systems. Choosing the right linear guide rails can significantly impact the performance, durability, and cost-effectiveness of your automation setup.

In this blog, we will guide you through the essential factors to consider when selecting linear guide rails for your specific automation needs.

What Are Linear Guide Rails?

Linear guide rails are mechanical components designed to provide precise linear motion. They consist of a rail and a carriage (or slider) with rolling elements like balls or rollers that allow smooth movement with minimal friction. These rails are widely used in CNC machines, robotic arms, packaging machines, and other automation equipment.

Why Choosing the Right Linear Guide Rails Matters

The right linear guide rail enhances:

  • Precision and accuracy — essential for high-quality manufacturing.
  • Load capacity — supports the weight and forces involved.
  • Durability and lifespan — reduces maintenance and replacement costs.
  • Smooth motion ensures operational efficiency.
  • Compatibility with the environment — handles factors like dust, moisture, and temperature.

Key Factors to Consider When Choosing Linear Guide Rails

1. Load Capacity and Dynamic Load Rating

Determine the maximum load your linear guide rail needs to carry. This includes both the static weight and dynamic forces during operation. The dynamic load rating indicates how much load the rail can sustain while maintaining its service life. Selecting a rail with appropriate load capacity prevents premature wear and failure.

2. Accuracy and Precision Requirements

Different automation applications demand varying levels of precision. For tasks like semiconductor manufacturing or high-precision CNC machining, rails with tight tolerances and minimal play are essential. Evaluate the required positioning accuracy before selecting your linear guide.

3. Environmental Conditions

Consider the environment where the linear guide rails will operate. Harsh environments with dust, moisture, or chemicals require corrosion-resistant materials or special coatings. For example, stainless steel rails are ideal for humid or corrosive conditions.

4. Rail Length and Mounting Options

Choose a rail length that fits your machine’s design and motion range. Additionally, check the mounting method compatibility with your equipment—some rails support surface mounting, while others offer embedded or adjustable mounting options.

5. Type of Rolling Elements: Ball Bearing vs Roller Bearing

Linear guides may use ball bearings or roller bearings:

  • Ball Bearing Rails: Provide smooth motion with less friction and are suitable for moderate loads.
  • Roller Bearing Rails: Handle higher loads and shock, but may have slightly more friction.
    Select the type based on your load and motion requirements.

6. Maintenance and Lubrication

Some linear guide rails come with self-lubricating features or sealed designs that minimize maintenance. For applications where downtime must be minimized, consider low-maintenance rails to improve overall productivity.

Why Choose Superslides for Your Linear Guide Rails?

Superslides, we specialize in high-quality linear guide rails and automation components tailored to your industry needs. Our products are manufactured with precision engineering and premium materials to ensure:

  • Superior load capacity and durability.
  • Smooth and accurate motion.
  • Customization options for various sizes and mounting configurations.
  • Corrosion-resistant coatings for harsh environments.
  • Competitive pricing and timely delivery.

Conclusion

Selecting the right linear guide rails is a crucial step in optimizing your automation system’s performance and longevity. By carefully considering load requirements, precision, environment, and maintenance needs, you can ensure your machinery operates smoothly and efficiently.

Explore Superslides’ extensive range of linear guide rails and let our experts help you find the perfect solution for your automation challenges.

Read More

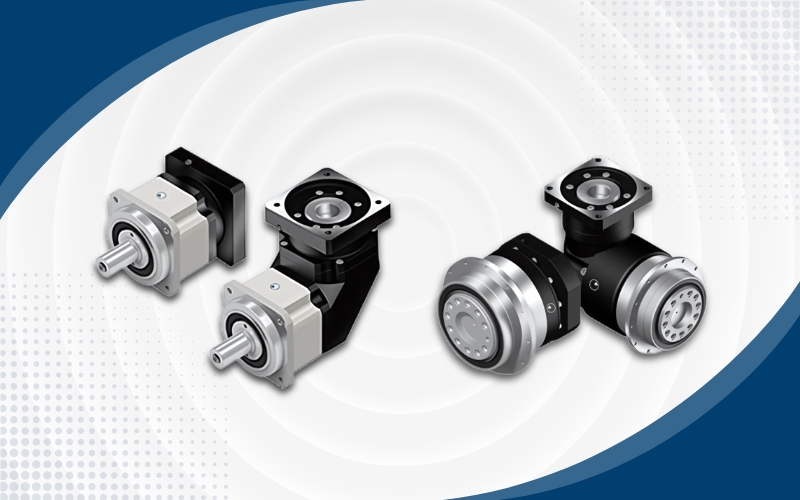

What is a Planetary Gearbox?

What is a Planetary Gearbox?

06 Jun 2025 0 comment

Blog

A Complete Guide to Working, Benefits, and Applications

A planetary gearbox, also known as an epicyclic gearbox, is a compact, high-performance gear mechanism widely used in industrial and mechanical systems. Renowned for its ability to handle high torque loads and deliver efficient power transmission, a planetary gearbox is commonly found in automation systems, robotics, CNC machines, and heavy-duty equipment. The unique design of the gearbox allows multiple gears to share the load simultaneously, offering better balance, greater strength, and a longer service life compared to traditional gear systems.

Understanding the Planetary Gearbox System

The planetary gearbox consists of three main components: a sun gear at the center, planet gears that revolve around the sun gear, and a ring gear that encloses the planet gears. These planet gears are mounted on a planet carrier, which connects the system and often serves as the output shaft. The term “planetary” comes from the way these gears rotate, just like planets orbiting the sun, offering smooth, synchronized motion.

This clever arrangement enables the transmission of torque through multiple contact points, resulting in a powerful yet compact system. The design also allows different parts of the gearbox to be fixed or rotated independently, providing several gear ratios and movement options. This versatility makes planetary gearboxes suitable for a wide range of speed and torque requirements.

How Does a Planetary Gearbox Work?

The working principle of a planetary gearbox is both efficient and elegant. When power is supplied to the sun gear, it begins to rotate, which in turn drives the planet gears surrounding it. These planet gears are engaged with the internal teeth of the outer ring gear, and as they rotate, they also revolve around the sun gear. The planet carrier holds these planet gears in place and rotates along with them, serving as the output shaft that transfers motion to the application.

Depending on the configuration, different components of the gearbox — the sun gear, ring gear, or planet carrier — can act as the input, output, or fixed element. This flexibility enables planetary gearboxes to deliver either high torque at low speeds or high-speed output, depending on the requirement. The constant engagement of multiple gears also ensures minimal power loss, high efficiency, and smoother operation compared to conventional gearboxes.

Key Advantages of Planetary Gearboxes

One of the most significant advantages of a planetary gearbox Dealer is its ability to produce high torque output within a compact footprint. Since the torque is distributed across multiple planet gears, the gearbox can handle heavier loads without compromising performance. This is especially useful in equipment that demands strong torque and durability in limited space, such as servo motors and industrial machinery.

In addition to torque efficiency, planetary gearboxes offer high mechanical efficiency, often reaching up to 95% or more. This means less energy is lost during gear transmission, which translates to better performance and reduced operational costs. Another standout benefit is the low backlash characteristic. Backlash refers to the slight movement or “play” in the gears when the direction of motion is reversed. In high-precision applications such as robotics, CNC systems, and automation arms, minimal backlash is essential for accurate and repeatable movements.

The durability and longevity of planetary gearboxes are also noteworthy. Due to the load-sharing mechanism among the planet gears and constant gear engagement, wear and tear are significantly reduced. This results in lower maintenance requirements and a longer operational life, even in demanding environments. Lastly, their versatile design makes them adaptable to a wide range of industries and applications.

Industrial Applications of Planetary Gearboxes

Planetary gearboxes are integral to numerous industrial sectors due to their strength, accuracy, and space-saving properties. In the field of industrial automation, they are used in conveyors, automated assembly lines, and packaging machines where high efficiency and reliability are crucial. In robotics, planetary gear motors enable precise, controlled movements of robotic joints and arms, allowing for accurate positioning and smooth motion.

The CNC machinery industry heavily relies on planetary gearboxes for their low backlash and consistent torque output, which is essential for cutting, engraving, and drilling tasks. In the automotive industry, planetary gearboxes are used in automatic transmissions to provide smooth gear shifting and improved driving performance. These gear systems are also common in printing and textile machines, where synchronized operation is necessary for high-quality output. Even in medical equipment, such as surgical robots and imaging systems, planetary gearboxes Dealer play a vital role in delivering accurate, low-noise performance.

Planetary Gearboxes vs. Traditional Gear Systems

When compared to traditional gearboxes like spur or helical gear systems, planetary gearboxes come out ahead in several critical aspects. Traditional gear systems generally operate with a single pair of gears in contact, limiting their load capacity and resulting in more wear and noise over time. In contrast, a planetary gearbox distributes the load among multiple gears, reducing stress on each component and enhancing the overall system’s efficiency and longevity.

Moreover, planetary gearboxes are significantly more compact and powerful, making them ideal for space-constrained environments. They also offer better torque-to-weight ratios, allowing for lightweight installations without compromising performance. The precise alignment and smooth meshing of gears in a planetary gearbox also contribute to quieter operation, which is particularly important in sensitive environments like labs and cleanrooms.

Why Choose Superslides Planetary Gearboxes?

Superslides is a Planetary Gearbox Dealer that offers a wide range of high-quality planetary gearboxes designed to meet the demands of modern industry. Whether you’re building advanced machinery, upgrading your automation setup, or looking for a robust gear solution for your robotics system, Superslides provides gearboxes that are engineered for durability, precision, and high performance.

Each gearbox is crafted using premium-grade materials, precision-cut gears, and state-of-the-art technology to ensure optimal efficiency and long-term reliability. With multiple gear ratio options, customizable torque outputs, and compact design features, Superslides planetary gearboxes can be tailored to suit various industrial needs. The brand is committed to delivering innovative solutions, backed by technical support and expert guidance to help you make the right choice.

Get in Touch with Superslides

Looking for the best planetary gearbox Dealer for your application? Connect with our team at Superslides to explore custom solutions, product specifications, and pricing. Whether you need gearboxes for robotics, automation, or manufacturing equipment, we’re here to help you find the perfect fit.

Read More
Failures in Lm Guides and Ballscrws

Failures in Lm Guides and Ballscrws

10 May 2021 0 comment

Does it happen that your linear motion system loses its accuracy or breaks down regularly? This failure of LM Guides and Ballscrew can happen because of many reasons which we will be describing here in brief. Most basic causes include lack of lubrication, misalignment in assembly, or excessive loading. Some of the most basic failures are as below: 1. WEAR Severe friction can result in serious wear of the rolling…

Read More

Accessories for LM Guideways

24 Jan 2021 0 comment

Linear Guideways consists for many small parts and components which usually can get weared during the course of its running. These parts can easily be replaced, so everytime you do not have to buy a new block. Generally the basic construction of LM Guideway we have seen in our other post (https://superslides.in/lm-guides/) and most of there basic items are readily available with us. In addition to replacement of the parts,…

Read More

Hollow and Cooling Nut Ballscrew

04 Dec 2020 0 comment

Ballscrews are one of the most critical components of a CNC machine. It is essential to keep the ballscrew in a good condition to maintain the accuracy in the machine. Some of the most common ways a ballscrew loses its accuracy are1. Excessive heating of Ballscew2. Insufficient lubrication3. Running over the suggested rpm Whenever there is an excessive heating of ballscrew the material tend to expand due to thermal expansion…

Read More

Miniature Series

31 Oct 2020 0 comment

There are various sizes of LM Guideways and Ballscrews available in the standard series. Numerous applications require numerous sizes and shapes of LM Guides and Ballscrews depending on space, loading capacity, working, and well as mounting. Miniature LM Guideway (MSC / MSD): The miniature guide series starts from size 5 up to 15 with 4 types of variants. MSC and MSD have a Gothic-arch groove and designed to contact angle…

Read More

Rack and Pinions

17 Oct 2020 0 comment

A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack), which operates to translate rotational motion into linear motion. Rack-and-pinion drives are often overlooked as past-generation technology with limited positioning accuracy. New-generation rack-and-pinion systems offer high dynamic performance and unlimited travel distance. Some include premium servo gears and actuators with backlash less than 1 arc-min., efficiency to 98.5%, and far more compact sizes…

Read More
