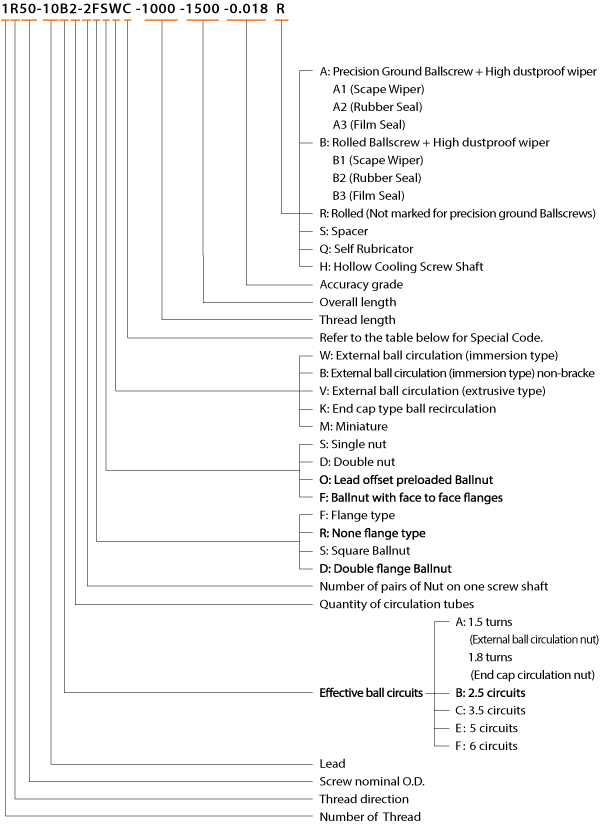

Nomenclature of External Circulation Ballscrew

Nomenclature of Internal Circulation Ballscrew

Nomenclature of Rolled Ballscrew

Nut Types of Rolled Ballscrew

Special Code for Nut

C Ground Grade
W Rolled Grade
E High Lead Ballscrews
H Heavy Load Ballscrews
N Rolled Grade (DIN 69051 Nut Dimension)
U Rolled Grade + Seal (DIN 69051 Nut Dimension)
M Automation Industry Specialized Type
A Deflector Type Cooling Nut- Recirculation Type
B Deflector Type Cooling Nut- Direct Passing Type
K High Lead Type Cooling Nut- Recirculation Type
T Rotation Nut Type
