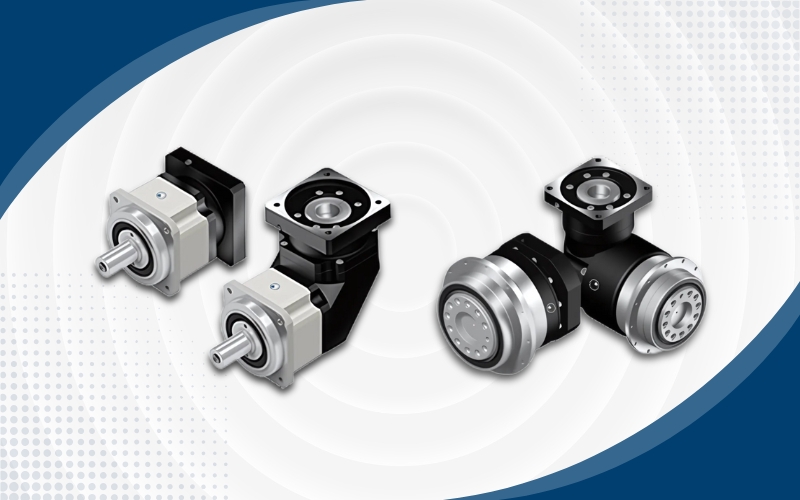

What is a Planetary Gearbox?

A Complete Guide to Working, Benefits, and Applications

A planetary gearbox, also known as an epicyclic gearbox, is a compact, high-performance gear mechanism widely used in industrial and mechanical systems. Renowned for its ability to handle high torque loads and deliver efficient power transmission, a planetary gearbox is commonly found in automation systems, robotics, CNC machines, and heavy-duty equipment. The unique design of the gearbox allows multiple gears to share the load simultaneously, offering better balance, greater strength, and a longer service life compared to traditional gear systems.

Understanding the Planetary Gearbox System

The planetary gearbox consists of three main components: a sun gear at the center, planet gears that revolve around the sun gear, and a ring gear that encloses the planet gears. These planet gears are mounted on a planet carrier, which connects the system and often serves as the output shaft. The term “planetary” comes from the way these gears rotate, just like planets orbiting the sun, offering smooth, synchronized motion.

This clever arrangement enables the transmission of torque through multiple contact points, resulting in a powerful yet compact system. The design also allows different parts of the gearbox to be fixed or rotated independently, providing several gear ratios and movement options. This versatility makes planetary gearboxes suitable for a wide range of speed and torque requirements.

How Does a Planetary Gearbox Work?

The working principle of a planetary gearbox is both efficient and elegant. When power is supplied to the sun gear, it begins to rotate, which in turn drives the planet gears surrounding it. These planet gears are engaged with the internal teeth of the outer ring gear, and as they rotate, they also revolve around the sun gear. The planet carrier holds these planet gears in place and rotates along with them, serving as the output shaft that transfers motion to the application.

Depending on the configuration, different components of the gearbox — the sun gear, ring gear, or planet carrier — can act as the input, output, or fixed element. This flexibility enables planetary gearboxes to deliver either high torque at low speeds or high-speed output, depending on the requirement. The constant engagement of multiple gears also ensures minimal power loss, high efficiency, and smoother operation compared to conventional gearboxes.

Key Advantages of Planetary Gearboxes

One of the most significant advantages of a planetary gearbox Dealer is its ability to produce high torque output within a compact footprint. Since the torque is distributed across multiple planet gears, the gearbox can handle heavier loads without compromising performance. This is especially useful in equipment that demands strong torque and durability in limited space, such as servo motors and industrial machinery.

In addition to torque efficiency, planetary gearboxes offer high mechanical efficiency, often reaching up to 95% or more. This means less energy is lost during gear transmission, which translates to better performance and reduced operational costs. Another standout benefit is the low backlash characteristic. Backlash refers to the slight movement or “play” in the gears when the direction of motion is reversed. In high-precision applications such as robotics, CNC systems, and automation arms, minimal backlash is essential for accurate and repeatable movements.

The durability and longevity of planetary gearboxes are also noteworthy. Due to the load-sharing mechanism among the planet gears and constant gear engagement, wear and tear are significantly reduced. This results in lower maintenance requirements and a longer operational life, even in demanding environments. Lastly, their versatile design makes them adaptable to a wide range of industries and applications.

Industrial Applications of Planetary Gearboxes

Planetary gearboxes are integral to numerous industrial sectors due to their strength, accuracy, and space-saving properties. In the field of industrial automation, they are used in conveyors, automated assembly lines, and packaging machines where high efficiency and reliability are crucial. In robotics, planetary gear motors enable precise, controlled movements of robotic joints and arms, allowing for accurate positioning and smooth motion.

The CNC machinery industry heavily relies on planetary gearboxes for their low backlash and consistent torque output, which is essential for cutting, engraving, and drilling tasks. In the automotive industry, planetary gearboxes are used in automatic transmissions to provide smooth gear shifting and improved driving performance. These gear systems are also common in printing and textile machines, where synchronized operation is necessary for high-quality output. Even in medical equipment, such as surgical robots and imaging systems, planetary gearboxes Dealer play a vital role in delivering accurate, low-noise performance.

Planetary Gearboxes vs. Traditional Gear Systems

When compared to traditional gearboxes like spur or helical gear systems, planetary gearboxes come out ahead in several critical aspects. Traditional gear systems generally operate with a single pair of gears in contact, limiting their load capacity and resulting in more wear and noise over time. In contrast, a planetary gearbox distributes the load among multiple gears, reducing stress on each component and enhancing the overall system’s efficiency and longevity.

Moreover, planetary gearboxes are significantly more compact and powerful, making them ideal for space-constrained environments. They also offer better torque-to-weight ratios, allowing for lightweight installations without compromising performance. The precise alignment and smooth meshing of gears in a planetary gearbox also contribute to quieter operation, which is particularly important in sensitive environments like labs and cleanrooms.

Why Choose Superslides Planetary Gearboxes?

Superslides is a Planetary Gearbox Dealer that offers a wide range of high-quality planetary gearboxes designed to meet the demands of modern industry. Whether you’re building advanced machinery, upgrading your automation setup, or looking for a robust gear solution for your robotics system, Superslides provides gearboxes that are engineered for durability, precision, and high performance.

Each gearbox is crafted using premium-grade materials, precision-cut gears, and state-of-the-art technology to ensure optimal efficiency and long-term reliability. With multiple gear ratio options, customizable torque outputs, and compact design features, Superslides planetary gearboxes can be tailored to suit various industrial needs. The brand is committed to delivering innovative solutions, backed by technical support and expert guidance to help you make the right choice.

Get in Touch with Superslides

Looking for the best planetary gearbox Dealer for your application? Connect with our team at Superslides to explore custom solutions, product specifications, and pricing. Whether you need gearboxes for robotics, automation, or manufacturing equipment, we’re here to help you find the perfect fit.
