Description

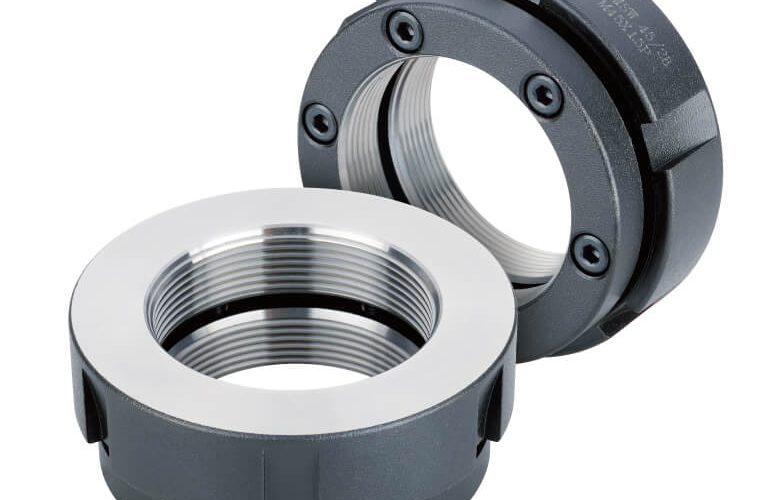

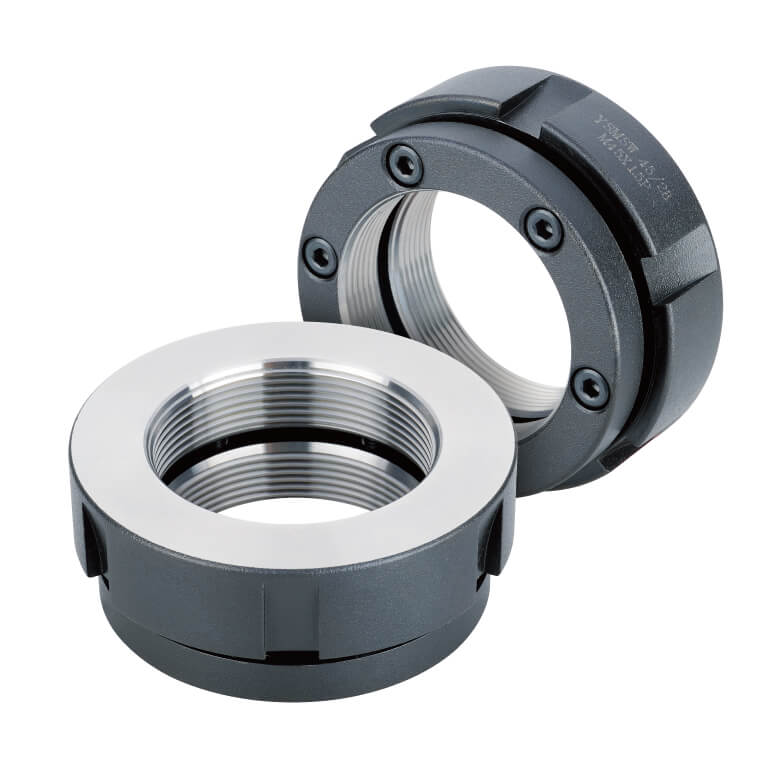

YSMSW locknut uses steel’s elasticity characteristics to securely fix the locknut in the axial direction. This type of nut is thicker and the outer diameter is larger, making this nut suitable for heavier axial loads.
- Material Composition: SCM440(42CrMo4)
- Hardness: HRC28° ~32°
- Thread Precision: ISO 4H
- Manufacturing Method: High Precision Turning
- Run Out: 0.005mm
|
Thread |
D |
h |
h1 |
g |
t |
d |
n-m |
MAX Nm |
YSMSW 20/28 -M20x1.5P |
42 |
28 |
11 |
6 |
2.5 |
38 |
2-M4 |
3.5 |
YSMSW 20/40 -M20x1.5P |
52 |
40 |
7 |
3 |
42 |
YSMSW 25/28 -M25x1.5P |
47 |
28 |
43 |
YSMSW 25/40 -M20x1.5P |
62 |
40 |
8 |
3.5 |
47 |
YSMSW 30/28 -M30x1.5P |
52 |
28 |
7 |
3 |
48 |
YSMSW 30/44 -M30x1.5P |
68 |
44 |
8 |
3.5 |
52 |
YSMSW 35/28 -M35x1.5P |
60 |
28 |
53 |
YSMSW 35/44 -M35x1.5P |
73 |
44 |
60 |
YSMSW 40/28 -M40x1.5P |
65 |
28 |
58 |
YSMSW 40/44 -M40x1.5P |
75 |
44 |
62 |
YSMSW 45/28 -M45x1.5P |
70 |
28 |
63 |
YSMSW 45/44 -M45x1.5P |
90 |
44 |
10 |
4 |
70 |
YSMSW 50/32 -M50x1.5P |
75 |
32 |
8 |
3.5 |
68 |
YSMSW 50/46 -M50x1.5P |
95 |
46 |
10 |
4 |
75 |
YSMSW 55/46 -M55x1.5P |
100 |
12 |
80 |
2-M5 |
4.5 |
YSMSW 60/46 -M60x1.5P |
85 |
YSMSW 65/46 -M65x1.5P |
110 |
90 |
YSMSW 70/46 -M70x1.5P |
115 |
95 |
|
