Description

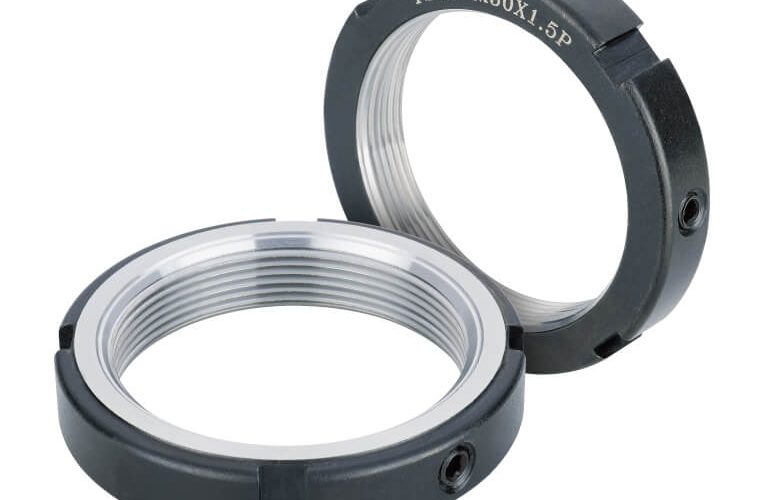

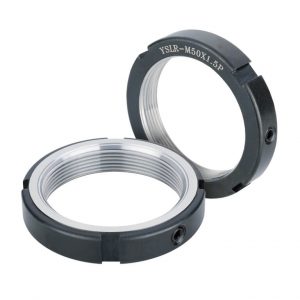

YSLR locknut uses steel’s elasticity characteristics to securely fix the locknut in the radial direction.
This type of nut is thinner and suited to more narrow applications. The design is very simple and easy to lock. This type of nut is not suitable for high precision requirements as it is more difficult to assure the perpendicularity of the nut at this size.
- Material Composition： SCM440(42CrMo4)
- Hardness： HRC28° ~32°
- Thread Precision： ISO 4H
- Manufacturing Method： High Precision Turning
- Run Out： 0.005mm
|
|
| Thread |
D |
h |
g |
t |
d |
n-m |
MAX Nm |
| YSLR-M12 x 1.0P |
24 |
12 |
4 |
2 |
19 |
2-M4 |
8 |
| YSLR-M14 x 1.0P |
26 |
21 |
| YSLR-M15 x 1.0P |
30 |
25 |
| YSLR-M17 x 1.0P |
32 |
27 |
2-M5 |
| YSLR-M18 x 1.0P |
| YSLR-M20 x 1.0P |
35 |
30 |
| YSLR-M22 x 1.5P |
| YSLR-M25 x 1.5P |
40 |
5 |
35 |
2-M6 |
| YSLR-M30 x 1.5P |
45 |
40 |
| YSLR-M32 x 1.5P |
46 |
41 |
| YSLR-M35 x 1.5P |
50 |
45 |
| YSLR-M38 x 1.5P |
52 |
47 |
| YSLR-M40 x 1.5P |
55 |
6 |
2.5 |
49 |
| YSLR-M42 x 1.5P |
56 |
50 |
| YSLR-M45 x 1.5P |
60 |
54 |
| YSLR-M50 x 1.5P |
65 |
59 |
| YSLR-M52 x 1.5P |
67 |
61 |
| YSLR-M55 x 2.0P |
75 |
15 |
7 |
3 |
68 |
2-M8 |
18 |
| YSLR-M60 x 2.0P |
80 |
73 |
| YSLR-M65 x 2.0P |
85 |
78 |
| YSLR-M70 x 2.0P |
90 |
8 |
3.5 |
82 |
| YSLR-M75 x 2.0P |
95 |
87 |
| YSLR-M80 x 2.0P |
105 |
97 |
| YSLR-M85 x 2.0P |
110 |
102 |
| YSLR-M90 x 2.0P |
115 |
10 |
4 |
106 |
| YSLR-M95 x 2.0P |
120 |
111 |
| YSLR-M100 x 2.0P |
125 |
116 |
| YSLR-M105 x 2.0P |
130 |
20 |
12 |
5 |
119 |
| YSLR-M110 x 2.0P |
135 |
124 |
| YSLR-M115 x 2.0P |
140 |
129 |
| YSLR-M120 x 2.0P |
145 |
134 |
| YSLR-M125 x 2.0P |
150 |
139 |
| YSLR-M130 x 2.0P |
155 |
144 |
| YSLR-M135 x 2.0P |
165 |
14 |
6 |
152 |
2-M10 |
35 |
| YSLR-M140 x 2.0P |
170 |
157 |
| YSLR-M145 x 2.0P |
175 |
162 |
| YSLR-M150 x 2.0P |
180 |
167 |
|
