| Number of Thread/Thread Direction | 1/Right | |
| BCD | 4.1 | |
| Lead | 1 | |
| Ball Dia. | 0.8 | |
| Effective Turns(Circuit×Row) | 2.5 × 1 | |
| Lead Angle | 4.44 | |
| Dynamic Rate Load Ca(kgf) | 49 | |
| Static Rate Load Co(kgf) | 70 | |
| Axial Play | 0 | 0.005or less |
| Preloading Torque(kgf-cm) | 0.01~0.1 | 0.03or less |
| Model No.shaft | Screw Spindle (Shaft) Length | Accuracy Grade |

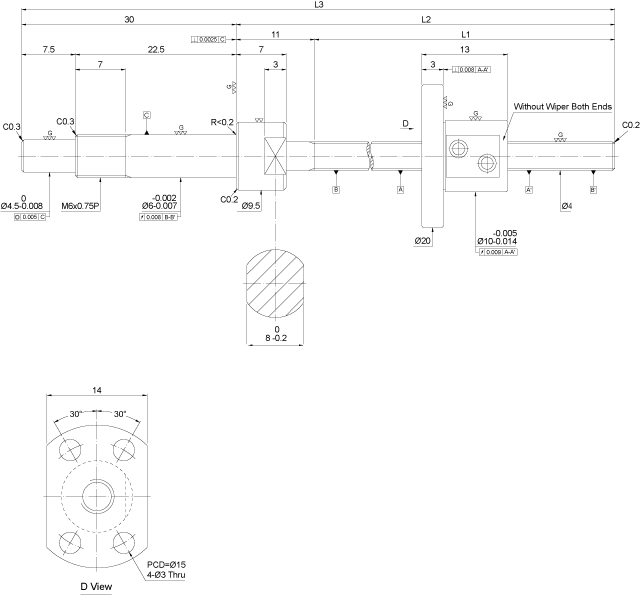

Lead Accuracy | 2D-CAD (DWG) |
||||
| L1 | L2 |
L3 |
Specified Travel(T) | Accumulated referemce lead deviation E | Lead Deriation in random 300mme300 | |||
| FSM0401-C3-1R-0085 | 44 | 55 | 85 | 3 | 0 | 0.012 | 0.008 |  |
| FSM0401-C3-1R-0105 | 64 | 75 | 105 | 3 | 0 | 0.012 | 0.008 | |
| FSM0401-C3-1R-0135 | 94 | 105 | 135 | 3 | 0 | 0.012 | 0.008 | |
