Number of Thread/Thread Direction 1/Right
BCD 12.3
Lead 2
Ball Dia. 1.588
Effective Turns(Circuit×Row) 2.5 × 1
Lead Angle 2.96
Dynamic Rate Load Ca(kgf) 240
Static Rate Load Co(kgf) 450
Axial Play 0 0.005 or less
Preloading Torque(kgf-cm) 0.04~0.4 0.1or less

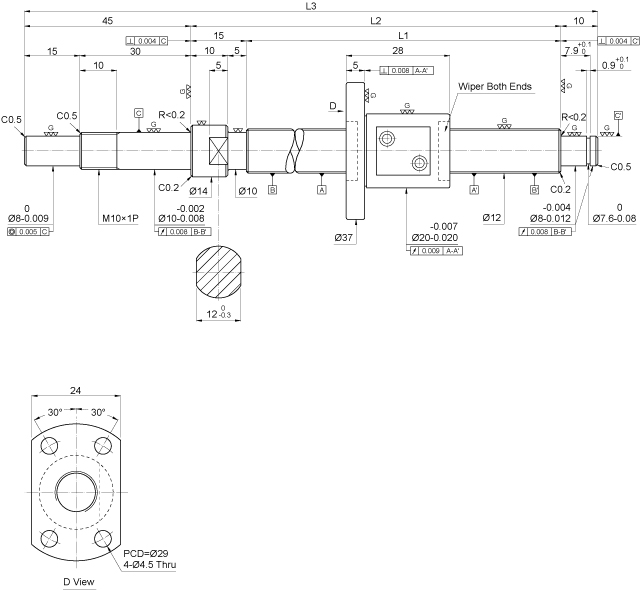

Model No.shaft Screw Spindle (Shaft) Length Accuracy
Grade		 Lead Accuracy 2D-CAD
(DWG)
L1 L2

L3

 Specified Travel(T) Accumulated referemce lead deviation E Lead Deriation in random 300mm e300
FSM1202-C3-1R-0180 110 125 180 3 0 0.012 0.008 cad button
FSM1202-C3-1R-0230 160 175 230 3 0 0.012 0.008 cad button
FSM1202-C3-1R-0280 210 225 280 3 0 0.012 0.008 cad button
FSM1202-C3-1R-0330 260 275 330 3 0 0.012 0.008 cad button
FSM1202-C3-1R-0380 310 325 380 3 0 0.012 0.008 cad button
