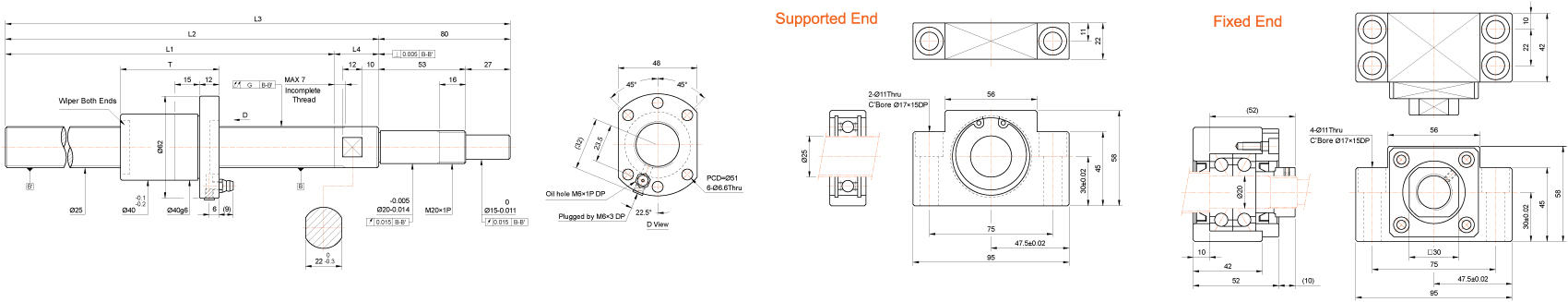

Coam and Cam are the modified static and dynamic load capacities,calculated according to ISO-3408-5

Model No. Screw Dia. Lead Modified Load Capacity(kgf) Screw Shaft Length Nut Accuracy
Grade		 Axial Play Lead Accuracy Tolerances Fixed End–bearing(kgf) Supported End–bearing(kgf) 2D-CAD
(DWG)
d I

Dynamic Cam

 Static Coam L1 L2 L3 L4 T Specified
Travel (T)		 Travel (T)
Accumulated
reference lead
deviation (E)		 Lead Deriation in
random 300mm
(e300)		 Overall
Radial
Runout

Dynamic
Ca

 Static
Co

Dynamic
Ca

 Static
Co
BL025100600+A000 25 10 1440 3840 493 520 600 27 60 C5 < 0.005 0 0.027 0.018 0.050 1480 847 1030 597 cad button
BL025101000+A000 25 10 1440 3840 893 920 1000 27 60 C5 < 0.005 0 0.040 0.018 0.085 1480 847 1030 597 cad button
BL025101450+A000 25 10 1440 3840 1343 1370 1450 27 60 C5 < 0.005 0 0.054 0.018 0.130 1480 847 1030 597 cad button
BL025200600+A000 25 20 750 1840 494 520 600 26 60 C5 < 0.005 0 0.027 0.018 0.050 1480 847 1030 597 cad button
BL025201000+A000 25 20 750 1840 894 920 1000 26 60 C5 < 0.005 0 0.040 0.018 0.085 1480 847 1030 597 cad button
BL025201450+A000 25 20 750 1840 1344 1370 1450 26 60 C5 < 0.005 0 0.054 0.018 0.130 1480 847 1030 597 cad button
BL025250600+A000 25 25 750 1840 490 520 600 30 71 C5 < 0.005 0 0.027 0.018 0.050 1480 847 1030 597 cad button
BL025251000+A000 25 25 750 1840 890 920 1000 30 71 C5 < 0.005 0 0.040 0.018 0.085 1480 847 1030 597 cad button
BL025251450+A000 25 25 750 1840 1340 1370 1450 30 71 C5 < 0.005 0 0.054 0.018 0.130 1480 847 1030 597 cad button
