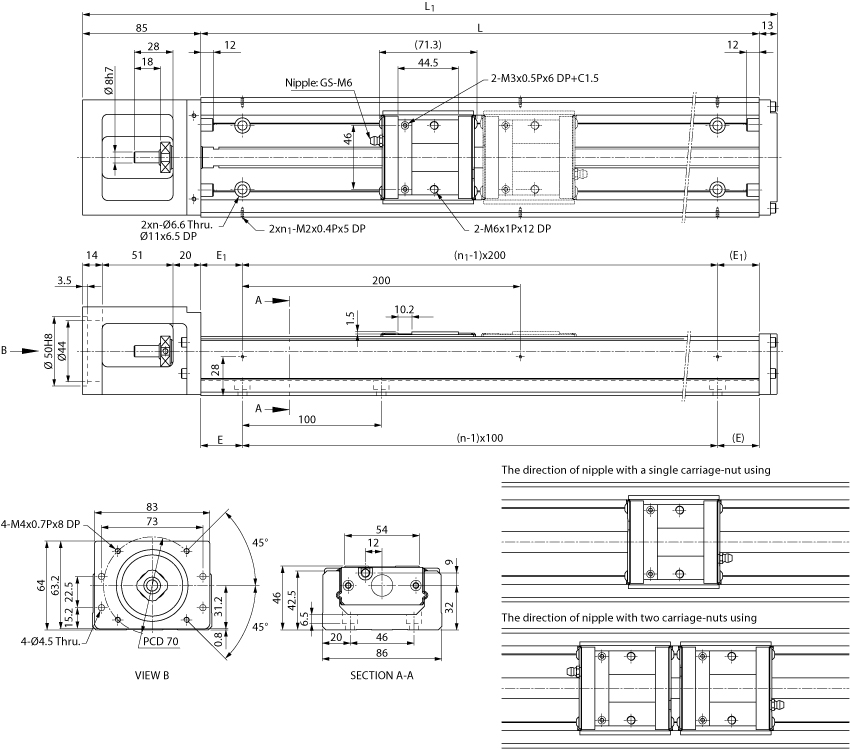

Note*: The max. stroke of D type is base on two carriage-nuts used in closed contact with each other.
Unit:mm | |||||||||
Rail Length L |
Overall Length L1 |
Max. Stroke | E |
n |
E1 | n1 | Weight(kg) | ||
C Type | D Type | C Type | D Type | ||||||
340 | 438 | 244.7 | 173.4 | 70 | 3 | 70 | 2 | 7.25 | 8.05 |
440 | 538 | 344.7 | 273.4 | 70 | 4 | 20 | 3 | 8.54 | 9.34 |
540 | 638 | 444.7 | 373.4 | 70 | 5 | 70 | 3 | 9.84 | 10.64 |
640 | 738 | 544.7 | 473.4 | 70 | 6 | 20 | 4 | 11.15 | 11.95 |
740 | 838 | 644.7 | 573.4 | 70 | 7 | 70 | 4 | 12.55 | 13.35 |
940 | 1038 | 844.7 | 773.4 | 70 | 9 | 70 | 5 | 14.84 | 15.64 |

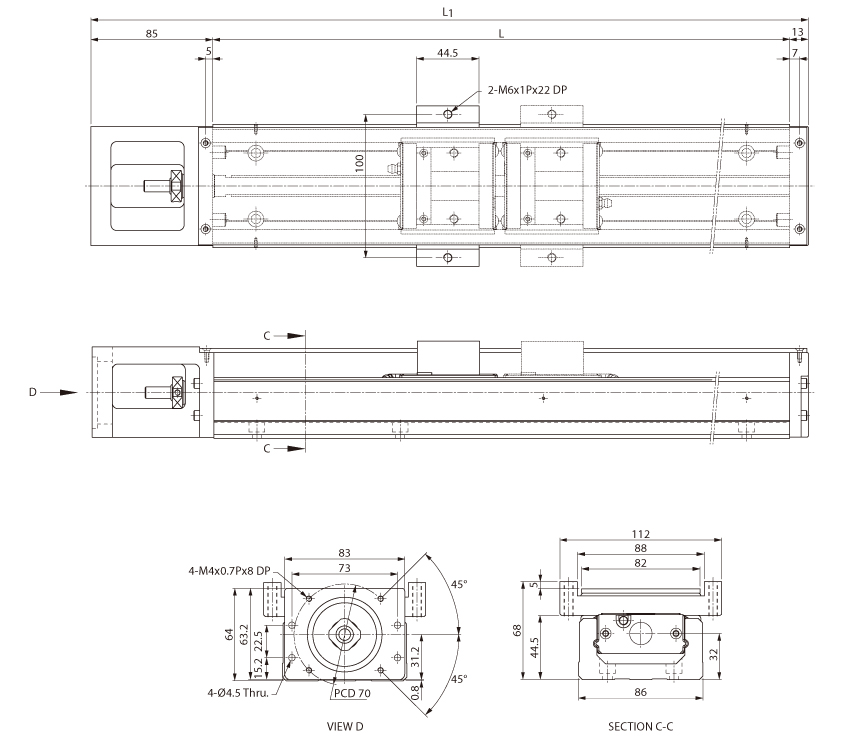

KM46 Cover Type(C,D Type)
Note*: The max. stroke of D type is base on two carriage-nuts used in closed contact with each other.
Unit:mm | |||||
Rail Length L |
Overall Lengt L1 |
Max. Stroke | Weight(kg) | ||
C Type | D Type | C Type | D Type | ||
340 | 438 | 244.7 | 173.4 | 7.45 | 8.45 |
440 | 538 | 344.7 | 273.4 | 8.74 | 9.74 |
540 | 638 | 444.7 | 373.4 | 10.04 | 11.04 |
640 | 738 | 544.7 | 473.4 | 11.35 | 12.35 |
740 | 838 | 644.7 | 573.4 | 12.75 | 13.75 |
940 | 1038 | 844.7 | 773.4 | 15.04 | 16.04 |
