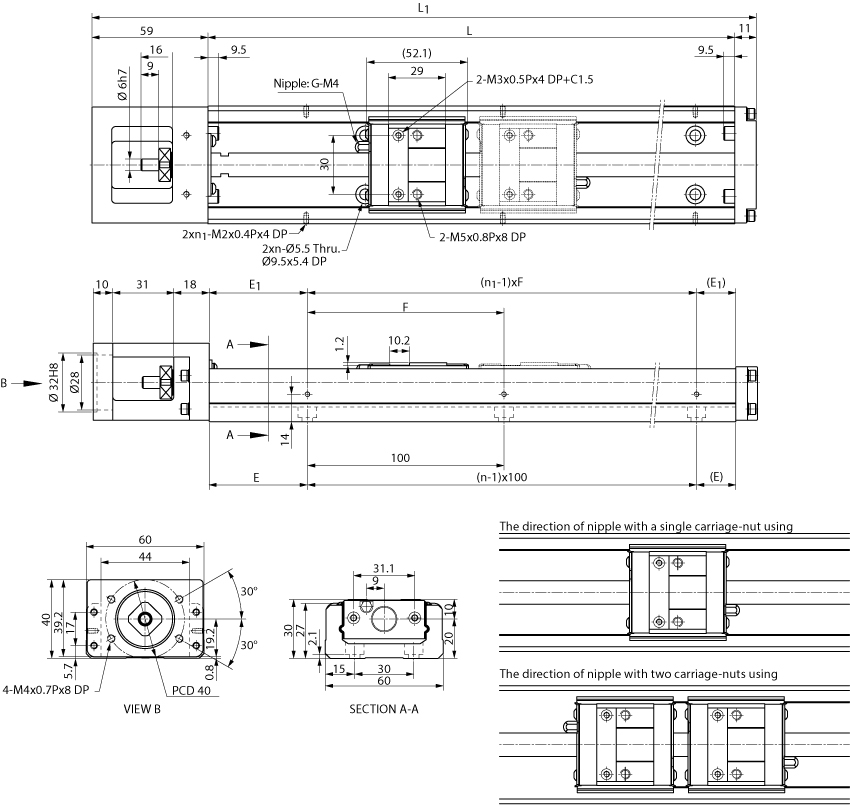

Note*: The max. stroke of D type is base on two carriage-nuts used in closed contact with each other.
Unit:mm | ||||||||||
Rail Length L |
Overall Length L1 |
Max. Stroke | E |
n |
E1 | n1 | F | Weight(kg) | ||
C Type | D Type | C Type | D Type | |||||||
150 | 220 | 78.8 | 26.6 | 25 | 2 | 25 | 2 | 100 | 1.4 | 1.63 |
200 | 270 | 128.8 | 76.6 | 50 | 2 | 50 | 2 | 100 | 1.69 | 1.92 |
300 | 370 | 228.8 | 176.6 | 50 | 3 | 50 | 2 | 200 | 2.28 | 2.51 |
400 | 470 | 328.8 | 276.6 | 50 | 4 | 100 | 2 | 200 | 2.88 | 3.11 |
500 | 570 | 428.8 | 376.6 | 50 | 5 | 50 | 3 | 200 | 3.56 | 3.79 |
600 | 670 | 528.8 | 476.6 | 50 | 6 | 100 | 3 | 200 | 4.17 | 4.4 |

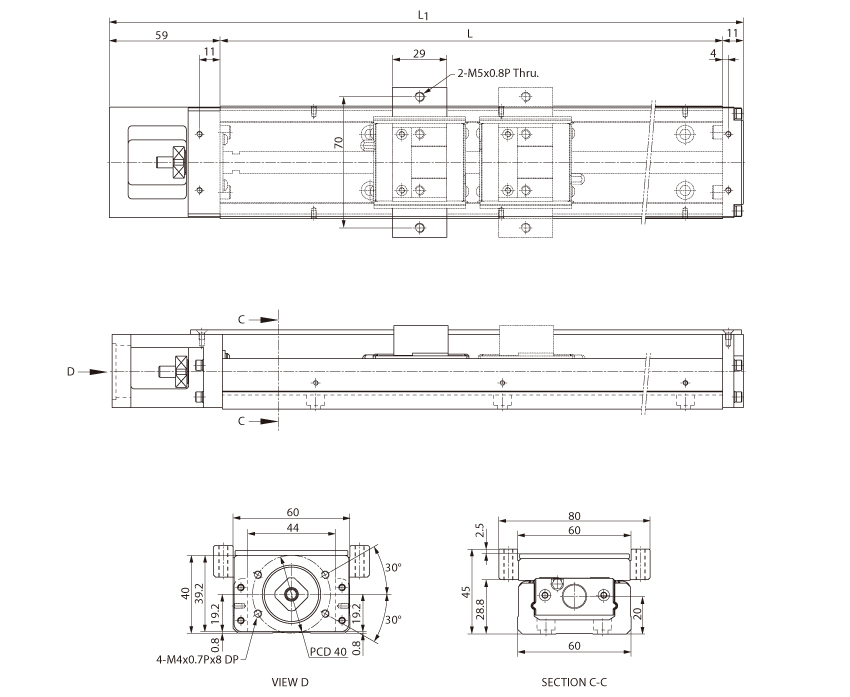

KM30 Cover Type(C,D Type)
Note*: The max. stroke of D type is base on two carriage-nuts used in closed contact with each other.
Unit:mm | |||||
Rail Length L |
Overall Length L1 |
Max. Stroke | Weight(kg) | ||
C Type | D Type | C Type | D Type | ||
150 | 220 | 78.8 | 26.6 | 1.51 | 1.76 |
200 | 270 | 128.8 | 76.6 | 1.82 | 2.07 |
300 | 370 | 228.8 | 176.6 | 2.45 | 2.70 |
400 | 470 | 328.8 | 276.6 | 3.09 | 3.34 |
300 | 570 | 428.8 | 376.6 | 3.82 | 4.07 |
600 | 670 | 528.8 | 476.6 | 4.47 | 4.72 |
