Note*: The max. stroke of B type is base on two carriage-nuts used in closed contact with each other.

Unit:mm
Rail Length
L		 Overall Length
L1		 Max. Stroke E

n

 E1 F Weight(kg)
A Type B Type A Type B Type
100 159 41.8 - 20 2 2.5 105 0.473 -
150 209 91.8 46.8 15 3 2.5 155 0.593 0.693
200 259 141.8 96.8 40 3 2.5 205 0.713 0.813

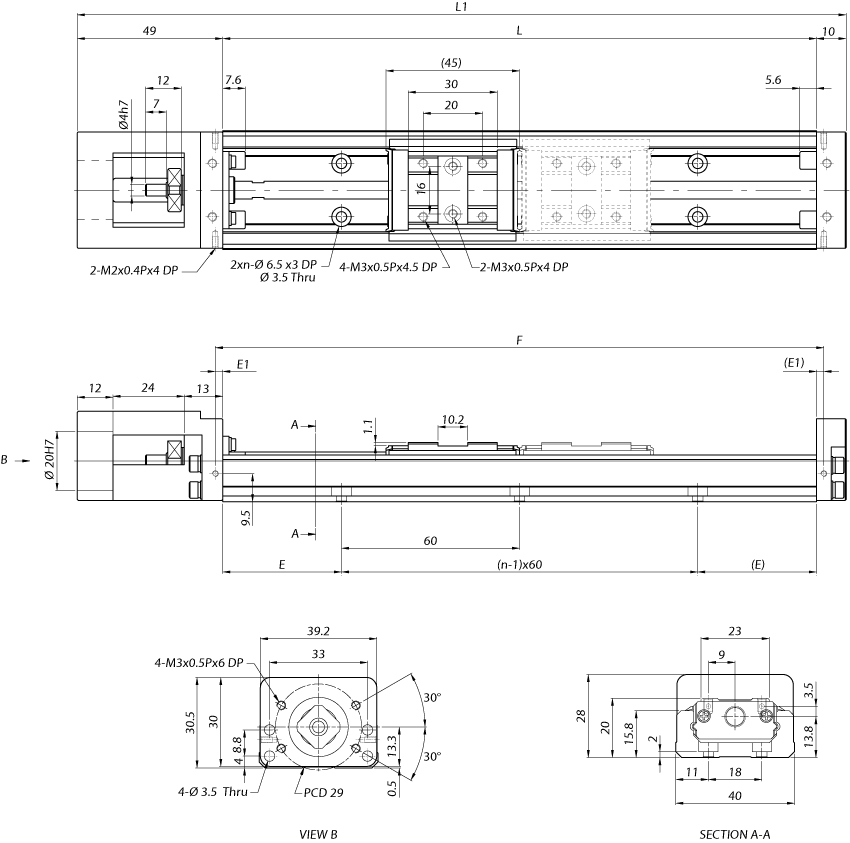

KM20 Cover Type(A,B Type)

Note*: The max. stroke of B type is base on two carriage-nuts used in closed contact with each other.

Unit:mm
Rail Length
L		 Overall Length
L1		 Max. Stroke Weight(kg)
A Type B Type A Type B Type
100 159 41.8 - 0.764 -
150 209 91.8 46.8 0.776 0.879
200 259 141.8 96.8 0.788 0.891
