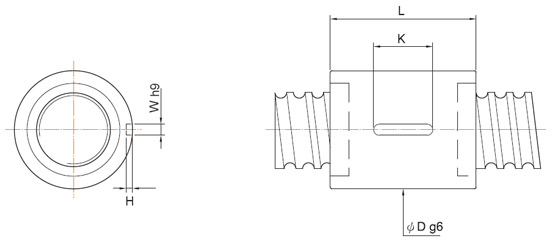

Description

Screw size Ball DIA.

Effective
turns

 BASIC RATE LOAD(kgf) Nut Keyway Stiffness 2D-CAD
(DWG)
O.D. Lead Dynamic
(1×106 REV.)
Ca		 Static

Co

 Dg6

L

 K W H kgf/µm
16 5 3.175 3 765 1240 30 40 20 3 1.8 18 cad button
20 5 3.175 3 860 1710 34 41 20 3 1.8 21 cad button
4 1100 2280 48 28 cad button
6 3.969 3 1080 2050 34 46 20 4 2.5 22 cad button
4 1380 2730 56 25 28 cad button
25 5 3.175 3 980 2300 40 41 20 4 2.5 26 cad button
4 1250 3070 48 33 cad button
6 3.969 3 1275 2740 40 46 20 4 2.5 26 cad button
4 1630 3650 56 25 34 cad button
32 5 3.175 3 1095 3060 48 41 20 4 2.5 31 cad button
4 1400 4080 48 20 41 cad button
6 1980 6120 61 25 60 cad button
6 3.969 3 1500 3750 50 46 20 5 3.0 32 cad button
4 1920 5000 56 25 43 cad button
6 2720 7500 70 32 63 cad button
8 4.762 3 1820 4230 50 59 25 5 3.0 32 cad button
4 2330 5640 70 43 cad button
10 6.35 3 2605 5310 50 68 25
32		 6 3.5 33 cad button
4 3340 7080 79 45 cad button
40 5 3.175 4 1575 5290 55 48 20 4 2.5 49 cad button
6 2230 7940 61 25 73 cad button
6 3.969 4 2130 6410 55 56 25 5 3.0 51 cad button
6 3020 9620 70 32 75 cad button
8 4.762 4 2720 7620 60 70 25 5 3.0 52 cad button
6 3850 11430 91 40 77 cad button
10 6.35 3 3010 7100 65 68 25 6 3.5 41 cad button
4 3850 9470 79 32 53 cad button
50 5 3.175 4 1730 6750 66 48 20 4 2.5 60 cad button
6 2450 10130 61 25 86 cad button
6 3.969 4 2380 8250 66 56 25 5 3.0 61 cad button
6 3370 12380 70 32 90 cad button
8 4.762 4 3010 9610 70 70 32 5 3.0 63 cad button
6 4260 14420 91 92 cad button
10 6.35 3 3430 9300 74 68 32 6 3.5 49 cad button
4 4390 12400 79 65 cad button
6 6220 18600 102 95 cad button
12 7.938 3 4510 11150 75 82 40 6 3.5 50 cad button
4 5770 14870 95 66 cad button
63 6 3.969 4 2610 10550 80 56 25 6 3.5 73 cad button
6 3700 15830 70 32 107 cad button
8 4.762 4 3375 12200 82 70 32 6 3.5 76 cad button
6 4780 18300 91 40 111 cad button
10 6.35 4 5020 16450 85 79 32 8 4.0 79 cad button
6 7110 24680 85 40 116 cad button
12 7.938 4 6580 19430 90 95 40 8 4.0 80 cad button
6 9320 29150 123 50 118 cad button
80 10 6.35 4 5510 21200 105 79 32 8 4.0 95 cad button
6 7810 31800 102 40 140 cad button
12 7.938 4 7500 25700 110 95 40 8 4.0 98 cad button
6 10620 38550 123 50 143 cad button
20 9.535 3 9770 31700 115 126 50 10 5.0 97 cad button
4 12510 42270 149 63 127 cad button
100 10 6.35 3 4760 20090 125 72 50 10 5 91 cad button
4 6090 26790 82 120 cad button
5 7380 33490 94 148 cad button
6 8630 40190 104 176 cad button
16 9.525 4 14440 54960 135 128 63 10 5 140 cad button
5 17490 68700 77 173 cad button
6 20460 82440 162 205 cad button
20 9.525 4 14440 54960 135 144 63 10 5 140 cad button
5 17490 68700 164 173 cad button
6 20460 82400 187 205 cad button
