Description

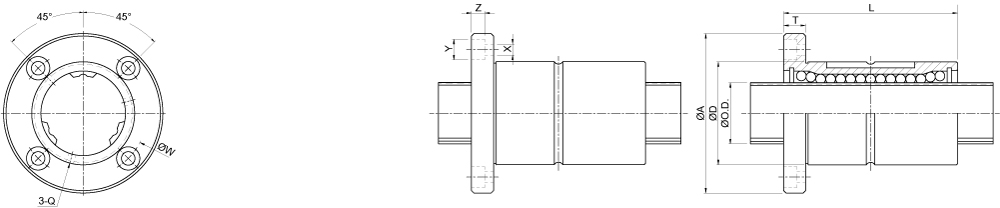

| Model No. | Size | Basic torque rating | Basic load rating | Static permissible moment | Mass | 2D-CAD (DWG) |
|||||||||||||||||
| Diameter | Length | Flange diameter | Bolt | Greasing hole | Shaft diameter | Rows of balls | Cr (N‧m) |
Cor (N‧m) |
Ca (kN) |
Co (kN) |
MA1 (N‧m) |
MA2 (N‧m) |
Nut (g) |
Shaft (kg/m) |
|||||||||
| D | Tolerance | L | Tolerance | T | A | Tolerance | W | X | Y | Z | Q | O.D. | |||||||||||
| 16 | 31 | 0 -0.013 |
50 | 0 -0.2 |
7 | 51 | 0 -0.2 |
40 | 4.5 | 8 | 4.4 | 2 | 16 | 3 | 31.4 | 34.3 | 7.6 | 12.4 | 60 | 360 | 207 | 1.56 |  |
| 20 | 35 | 0 -0.016 |
63 | 9 | 58 | 45 | 5.5 | 9.5 | 5.4 | 2 | 20 | 3 | 56.8 | 55.8 | 11.2 | 19.5 | 120 | 720 | 303 | 2.44 | |
||
| 25 | 42 | 71 | 0 -0.3 |
9 | 65 | 52 | 5.5 | 9.5 | 5.4 | 3 | 25 | 3 | 105 | 103 | 15.2 | 25.3 | 180 | 1140 | 397 | 3.82 | |
||
