Description

Coam and Cam are the modified static and dynamic load capacities, calculated according toISO-3408-5

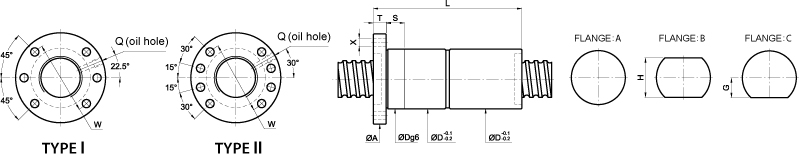

Screw size		Ball DIA.	Effective turns	MODIFIED LOAD CAPACITY(kgf)		Nut		Flange						Fit	Oil hole	Bolt	Stiffness	2D-CAD (DWG)
O.D.	Lead			Dynamic (1×106 REV.) Cam	Static Coam	Dg6	L	A	T	W	G	H	TYPE	S	Q	X	kgf/μm
20	4	2.381	3	780	2000	32	61	54	12	42	19	38	I	12	M6x1P	5.5	44
	5	3.175	4	1300	3030	36	80	62	12	49	24	48	I	12	M6x1P	6.6	65
	10		3	990	2220		97										50
	20		2	670	1450		116										33
	6	3.969	3	1540	3310	37	81	62	12	49	23	46	I	12	M6x1P	6.6	51
	8		3	1540	3300		93										51
	10	4.762	4	2560	5530	40	107	62	12	51	24	48	I	15	M6x1P	6.6	70
25	4	2.381	3	870	2560	36	60	62	12	49	22	44	I	12	M6x1P	6.6	53
	5	3.175	4	1440	3840	40	81	62	12	51	24	48	I	15	M6x1P	6.6	77
	10		3	1100	2810		100										58
	15		4	1410	3780		166										77
	20		2	750	1840		120										39
	25		2	730	1810		146										39
	6	3.969	4	2250	5710	43	87	64	12	51	24	48	I	15	M6x1P	6.6	80
	12		4	2240	5660		142										80
	25		2	1160	2720		145										41
	8	4.762	4	2880	6890	45	111	65	15	54	25.5	51	I	15	M6x1P	6.6	83
	10		4	2880	6870		128										83
	16		4	2830	6790		173										83
	20		2	1470	3180		122										42
	10	6.35	5	5050	11500	51	153	84	16	67	32	64	I	15	M6x1P	9	108
28	5	3.175	5	1850	5460	43	93	65	12	51	24	48	I	15	M8x1P	6.6	104
	6	3.969	5	2880	7980	46	106	66	12	54	26	52	I		M8x1P	6.6	108
	8	4.762	3	2350	5720	48	94	74	12	60	30	60	I		M8x1P	6.6	69
	10		3	2340	5710		102										69
	16		5	3680	9690		206										112
	10	6.35	5	5280	12530	54	158	87	16	72	34.5	69	I		M8x1P	9	118
	12		5	5270	12500		172										118
32	5	3.175	4	1610	4970	50	81	87	16	72	34.5	69	I	15	M8x1P	9	93
	6	3.969	5	3050	9140	53	106	87	16	72	34.5	69	I	15	M8x1P	9	120
	10		4	2550	7500		126										96
	32		2	1300	3540		172										60
	8	4.762	5	3900	10930	53	132	87	16	72	34.5	69	I	15	M8x1P	9	124
	10		5	3890	10910		147										124
	12		5	3890	10890		171										124
	15		5	3860	10850		221										124
	20		2	1700	4230		140										51
	32		2	1640	4120		186										51
	10	5.556	5	4900	13360	55	153	87	16	72	34.5	69	I	15	M8x1P	9	129
	12		5	4890	13340		172										129
	16		5	4860	13280		211										121
	20		3	3140	8110		177										79
	10	6.35	5	5720	14490	57	153	87	16	72	34.5	69	I	15	M8x1P	9	131
	12		5	5710	14470		172										131
	16		4	4520	11100		180										105
	20		3	3530	8340		178										80
36	8	4.762	5	4170	12580	56	127	84	11	68	34	68	II	15	M8x1P	9	133
	10	6.35	5	6050	16460	61	153	91	18	76	34	68	II	15	M8x1P	9	142
	12		5	6080	16430		172										142
	16		5	6050	16360		213										142
	20		4	4910	12890		217										115
	36		2	2570	6250		194										59
38	10	6.35	5	6260	17740	63	155	93	18	78	35	70	II	20	M8x1P	9	149
	12		5	6260	17410		172										149
	16		5	6220	17350		213										149
	40		3	3830	10220		282										106
40	5	3.175	4	1760	6260	58	87	91	18	76	34	68	II	15	M8x1P	9	111
	6	3.969	5	3420	11810	58	108	91	18	76	34	68	II	15	M8x1P	9	142
	8	4.762	4	3610	11260	60	112	91	18	76	34	68	II	15	M8x1P	9	118
	10	6.35	5	6430	18440	65	158	95	18	80	36	72	II	20	M8x1P	9	155
	12		5	6420	18410		172										155
	15		5	6380	18350		226										155
	16		5	6390	18330		212										155
	20		4	5190	14450		220	98	18	83	37	74	II	20	M8x1P	11	125
	40		2	2700	6950		210										64
	12	7.144	5	7530	20800	70	174	98	18	83	37	74	II	20	M8x1P	11	158
	16		5	7500	20730		212										158
45	8	4.762	4	3770	12580	66	114	98	18	83	37	74	II	20	M8x1P	11	130
	10	6.35	5	6910	21330	70	158	105	18	88	40	80	II	20	M8x1P	11	170
	12		5	6910	21310		171										170
	16		5	6880	21250		215										170
	12	7.144	5	7930	23300	73	178	105	18	88	40	80	II	20	M8x1P	11	173
	20		4	6440	18340		220										139
50	5	3.175	5	2360	9950	75	98	105	18	88	40	80	II	20	M8x1P	11	164
	8	4.762	5	4780	17550	75	128	105	18	88	40	80	II	20	M8x1P	11	169
	10	6.35	5	7160	23320	75	158	118	18	100	46	92	II	20	M8x1P	11	185
	12		5	7150	23300		174										185
	16		5	7120	23250		215										185
	20		3	4460	13520		185										112
	20	7.938	4	7810	22680	80	220	121	18	104	46	92	II	20	M8x1P	11	154
55	12	6.35	5	7340	25280	80	174	118	18	100	46	92	II	20	M8x1P	11	198
63	10	6.35	5	7800	29210	88	164	135	22	115	50	100	II	20	M8x1P	14	220
	16	9.525	5	13640	43620	102	228	147	20	127	56	112	II	25	M8x1P	14	257
80	20	9.525	5	15350	56760	118	283	165	25	145	65	130	II	25	M8x1P	14	305
	25		4	12530	44860		296										245
	30		3	9610	32980		254										185
