Features

Long Life
Structure of the newly developed circulation system is designed to distribute the load uniformly to the load balls and it also increases the life of ballscrews.

On conventional circulation system, FSDH, the returning tube is inserted into the holes on ballnut perpendicularly which forms an advancing angle.

While ball moves into returning tube, it will hit tube end area and then move into returning tube. New circulation system, FSVH, ball will move into returning tube smoothly by tangent line as the same direction as lead angle. It can increase the life of circulation system structure.

High DN Value
 With the newly developed circulation system, ballscrews can meet the demands of high speed running with high DN value.

Low Noise

To use tangential circulation system structure, it can eliminate the noise while balls run into the returning tube.

Various Specifi cations Combination
PMI can supply various ballscrews with diameter 50~100mm and lead 16mm to 25mm (Please contact PMI for your specifi c design requirement)

Application
Plastic Injection Machines / Press and Forging Machines / Semi-conductor Equipments / General Machines

Recommend mounting direction of heavy load ball screws
In order to support equal load distribution for shaft and nut, recommend mounting direction of ball screws allow fig.1 This mounting direction can avoided vibration as axial load uneven distribution for ball screws, therefore increase service life efficient.

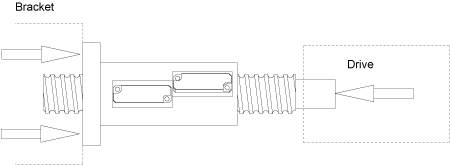

fig.1 Recommend mounting direction of heavy load ballscrew

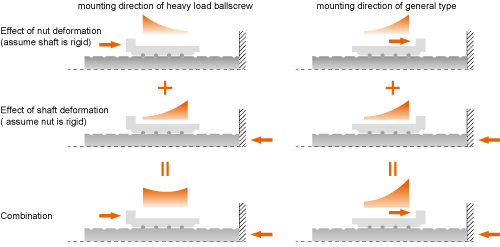

Fig. 2 Load distribution

Accuracy Grade and Axial Play
 If you have any question about accuracy grade and axial play(e.g. axial play <0), please contact our sales for your specific design requirement.

Application
Plastic Injection Machines / Press and Forging Machines / Semi-conductor Equipments / General Machines
